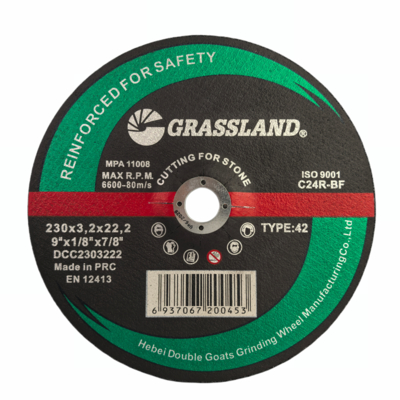

9 Inch Cut Off Angle Grinder Thin Cutting Disc 9" X 1/8” X 7/8" ISO

9 Inch Cut Off Angle Grinder Thin Cutting Disc 9" X 1/8” X 7/8" ISO
9 Inch Cut Off Angle Grinder Thin Cutting Disc 9" X 1/8” X 7/8" ISO

Большие изображения :  9 Inch Cut Off Angle Grinder Thin Cutting Disc 9" X 1/8” X 7/8" ISO

Подробная информация о продукте:
Place of Origin: China
Фирменное наименование: Grassland
Сертификация: ISO 9001,ISO14001 and MPA EN 12413
Model Number: 230*3.2*22.2
Оплата и доставка Условия:
Minimum Order Quantity: 10000 PCS
Цена: US$0.69-0.75
Packaging Details: shrink wrap-inner box-carton-enhanced pallet
Delivery Time: 30-60 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 300 thousand PCS PER day
контакт

9 Inch Cut Off Angle Grinder Thin Cutting Disc 9" X 1/8” X 7/8" ISO

описание
abrasive: aluminium oxide SA HS code: 68042210
Hardness: C24RBF Max working speed: 80 M/S
Grit size: 60#, Dimension: 9" x 1/8" x 7/8"
Application: Ferrous metal steel and Inox Bonding agent: resin bonded
arbor size: 7/8" Disc type: Depressed center type

9 inch Cut Off Wheels for Stainless Steel 9" x 1/8" x 7/8" Cutting Disc



Products Description--



Material: Resin and abrasives
Diameter: 230mm/ 9"
Thickness: 3.2mm
Hole Size: 22.2mm/ 7/8"
Max Operating Speed: 6600 RPM
Use: Angle Grinder



Grassland Metal Inox Cutting Off Wheels is designed to be used with a high-speed cutter, such as an angle grinder, circular saw, portable circular saw, or die grinder. The abrasive wheel makes fast, clean cuts in steel, stainless steel, and other ferrous metals. Made with tough aluminum oxide, heat-treated aluminum oxide, or silicon carbide abrasive grain and double-reinforced with high strength fiberglass, these cutting wheels



Metal Cutting Discs are manufactured using Aluminium Oxide abrasive grit with fibreglass reinforcing and resin bonded to provide both safety and optimum cutting performance. They must never be used for grinding and must always be presented to the workpiece at an angle of 90º. For use with a variety of machines, mini-grinders to stationary cutting-off machines. It is important to choose between a metal or stone cutting disc according to the material being cut, and to ensure that the correct wheel is properly mounted. Manufactured to EN 12413 standard. SAFETY TIPS ● Read the manufacturer's instructions carefully ● Wear goggles to guard against flying chips or dust ● Inspect the condition of the wheel frequently ● Adjust the guard to deflect sparks and dust ● Maintain the revs and let the wheel do the work Description: Metal Cutting Disc Diameter: 230mm Thickness: 3.2mm Bore (mm): 22.22 Type / Code: T42/ C24 RBF Max RPM / m/s: 6600 / 80

Features and benefits



1. Multilevel excellent glass fiber mesh and resin as reinforced bonded material. High cutting efficiency.
2. These good quality and long lasting discs ensure fast, straight and clean cutting
3. Continuous wheel blade offers smooth and chip-free cuts



Application:



Applications: All Stainless Steel and Non-ferrous Metal applications - Contaminant Free: Iron Sulfur, Chlorine ≤0.1%





Cutting wheel information:
Product Name 230 X 3.2 X 22.2 MM Abrasive Monocrystalline fused alumina
Hardness R Grade Net Standard Reinforced fiberglass
Max working speed

80 m/s

 OEM Service Acceptable
R.P.M 6600 Package

Kraft Carton and Pallet
Grit size 60# HS Code 68042210

Certificate

MPA EN12413,ISO9001

 Loading Port Tianjin or else



-Depressed center Inox grinding discs



Item Code Dimension Dimension Speed Standard
(MM) (Inch) (r.p.m)
DAC1002516 100*2.5*16 4*3/32*5/8 15200 80m/s
DAC1003016 100*3.0*16 4*1/8*5/8 15200 80m/s
DAC1152522 115*2.5*22.23 4-1/2*3/32*7/8 13300 80m/s
DAC1153022 115*3.0*22.23 5*1/8*7/8 13300 80m/s
DAC1252522 125*2.5*22.23 6*3/32*7/8 12200 80m/s
DAC1253022 125*3.0*22.23 7*1/8*7/8 12200 80m/s
DAC1502522 150*2.5*22.23 4-1/2*3/32*7/8 10200 80m/s
DAC1503022 150*3.0*22.23 5*1/8*7/8 10200 80m/s
DAC1802522 180*2.5*22.23 6*3/32*7/8 8500 80m/s
DAC1803022 180*3.0*22.23 7*1/8*7/8 8500 80m/s
DAC2302522 230*2.5*22.23 9*3/32*7/8 6600 80m/s

--Flat inox cutting discs

Description of goods Item No Specification Unit PCS/CTN N.W./G.W.(KGS) CARTON SIZE(CM)
Flat cutting disc for inox/Alu 80m/s FSC0751009 T41-75X1.0X9.5MM PC 800 9/10 34*17*17
FSC0751695 T41-75X1.6X9.5MM PC 800 14/15 34*20*17
FSC1001016 T41-100X1.0X16MM PC 400 8.5/9.5 22*22*15.7
FSC1002016 T41-100X2.0X16MM PC 400 15/16 29.7*22*22
FSC1151022 T41-115X1.0X22.2MM PC 400 11/12 24.5*24.5*15.7
FSC1151622 T41-115X1.6X22.2MM PC 400 14/15 24.5*24.5*19.2
FSC1152022 T41-115X2.0X22.2MM PC 200 9.5/10.5 24.5*24.5*13.2
FSC1251022 T41-125X1.0X22.2MM PC 400 13/14 26.5*25.6*15.7
FSC1251622 T41-125X1.6X22.2MM PC 400 17/18 26.5*25.6*19.2
FSC1252022 TT41-125X2.0X22.2MM PC 200 10.5/11.5 26.5*26.5*13.2
FSC1501622 T41-150X1.6X22.2MM PC 200 12/13 32*32*11.7
FSC1502022 T41-150X2.0X22.2MM PC 200 16.5/17.5 32*32*13.2
FSC1801622 T41-180X1.6X22.2MM PC 200 20/21 37.5*19*22.7
FSC1802022 T41-180X2.0X22.2MM PC 100 10.5/11 37.5*19*13.2
FSC2301622 T41-230X1.6X22.2MM PC 50 8/9 24*24*11.7
FSC2302022 T41-230X2.0X22.2MM PC 100 18.5/19.5 24*24*25.7
